Foundry & Forging
At LMW, we design advanced CNC machines to meet the unique demands of the foundry and forging industry. Built for precision, durability, and efficiency, our machines handle heavy-duty castings and intricate forgings with ease. Engineered for tough conditions, they deliver consistent quality, reduced downtime, and enhanced productivity for a wide range of materials and sizes.
Foundry & Forging Components

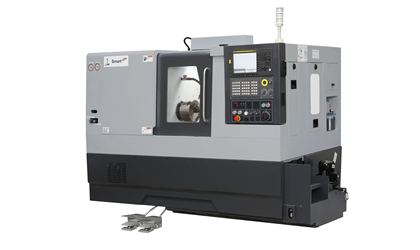

Smart Ultra
Chuck Dia (mm) : 200
Max.Turning Dia (mm) : 290
Max.Turning Length (mm) : 370
Spindle Power (kW) : 5.5/7.5
Hardness : 50 - 62 HRC
Material : Steel
Segment : Automobile

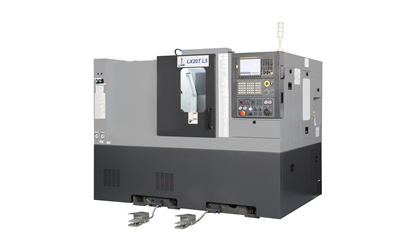

LX20T L5
Chuck Dia (mm) : 210
Max.Turning Dia (mm) : 320
Max.Turning Length (mm) : 500
Spindle Power (kW) : 7.5/11
Hardness : 220 - 280 BHN
Material : Stainless Steel
Segment : Pumps

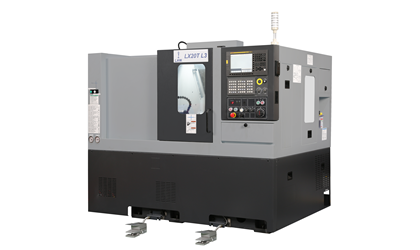

LX20T L3
Chuck Dia (mm) : 210
Max.Turning Dia (mm) : 320
Max.Turning Length (mm) : 310
Spindle Power (kW) : 9/11
Hardness : 180 - 250 HB
Material : Gray Cast Iron
Segment : Automobile
LR30T L7
Chuck Dia (mm) : 304
Max.Turning Dia (mm) : 470
Max.Turning Length (mm) : 700
Spindle Power (kW) : 15/18.5
Hardness : 150 - 250 HB
Material : Stainless Steel
Segment : Pumps

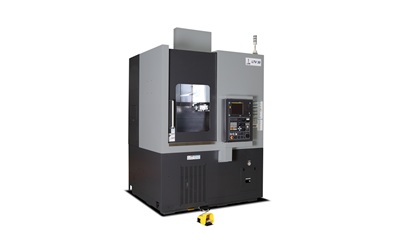

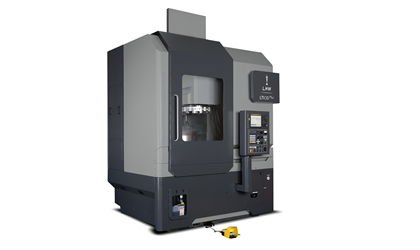

LTV 30 Plus
Chuck Dia (mm) : 381
Max.Turning Dia (mm) : 540
Max.Turning Length (mm) : 770
Spindle Power (kW) : 15/18.5
Hardness : 180 - 250 HB
Material : Cast Iron
Segment : Automobile

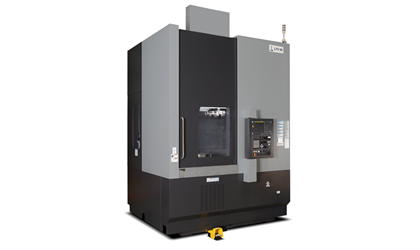

LTV 50
Chuck Dia (mm) : 530
Max.Turning Dia (mm) : 800
Max.Turning Length (mm) : 800
Spindle Power (kW) : 18.5/22
Hardness : 180 - 260 HB
Material : Gray Cast Iron
Segment : Automobile

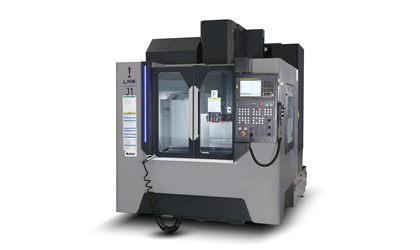

J1
Stroke: X Axis : 600 mm
Stroke: Y Axis : 500 mm
Stroke: Z Axis : 500 mm
Spindle Power (kW) : 15/11/7.5
Table Size (mm) : 900 x 500
Hardness : 220 - 280 BHN
Material : Stainless Steel
Segment : Valve

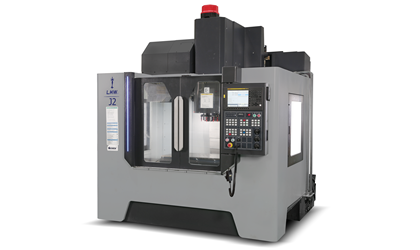

J2
Stroke: X Axis : 800 mm
Stroke: Y Axis : 500 mm
Stroke: Z Axis : 500 mm
Spindle Power (kW) : 7.5/11/15
Table Size (mm) : 1000 x 500
Hardness : 200 - 280 BHN
Material : SG - Iron
Segment : Automobile

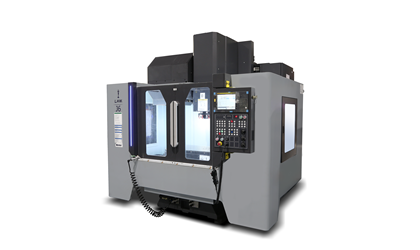

J6
Stroke: X Axis : 1000 mm
Stroke: Y Axis : 600 mm
Stroke: Z Axis : 600 mm
Spindle Power (kW) : 11/15/18.5
Table Size (mm) : 1200 x 600
Hardness : 58 – 62 HRC
Material : Die Steel
Segment : Die & Mould

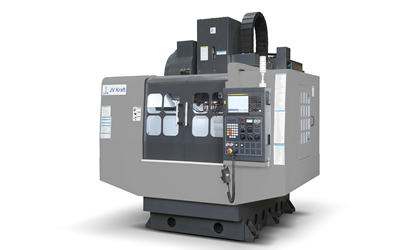

JV Kraft
Stroke: X Axis : 800 mm
Stroke: Y Axis : 440 mm
Stroke: Z Axis : 490 mm
Table Size (mm) : 1050 x 450
Spindle Power (kW) : 7.5/11
Hardness : 200 – 280 BHN
Material : Stainless Steel
Segment : Pumps

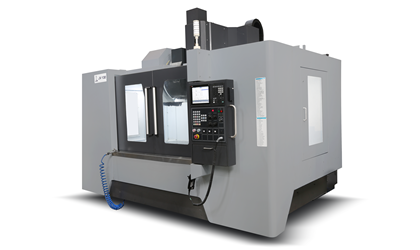

JV 130
Stroke: X Axis : 1300 mm
Stroke: Y Axis : 700 mm
Stroke: Z Axis : 650 mm
Table Size (mm) : 1350 x 660
Spindle Power (kW) : 11/15
Hardness : 58 – 62 HRC
Material : Die Steel
Segment : Die & Mould

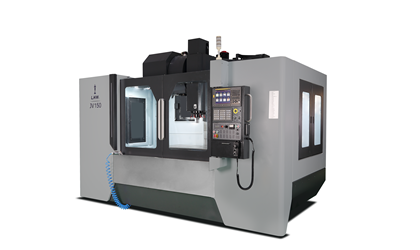

JV 150
Stroke: X Axis : 1550 mm
Stroke: Y Axis : 760 mm
Stroke: Z Axis : 760 mm
Table Size (mm) : 1700 x 700
Spindle Power (kW) : 11/15/18.5
Hardness : 58 – 62 HRC
Material : Die Steel
Segment : Die & Mould

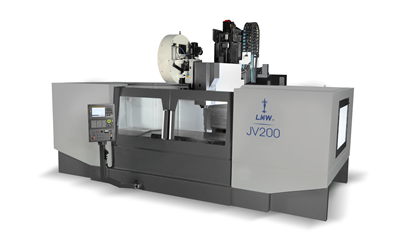

JV 200
Stroke: X Axis : 2000 mm
Stroke: Y Axis : 900 mm
Stroke: Z Axis : 800 mm
Table Size (mm) : 2100 x 800
Spindle Power (kW) : 15/18.5
Hardness : 58 – 62 HRC
Material : Die Steel
Segment : Die & Mould

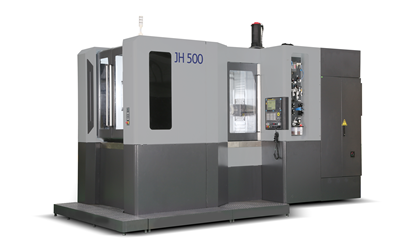

JH 500
Stroke: X Axis : 800 mm
Stroke: Y Axis : 800 mm
Stroke: Z Axis : 800 mm
Table Size (mm) : 500 x 630
Spindle Power (kW) : 13/22
Hardness : 220 - 280 BHN
Material : Stainless Steel
Segment : Valves
