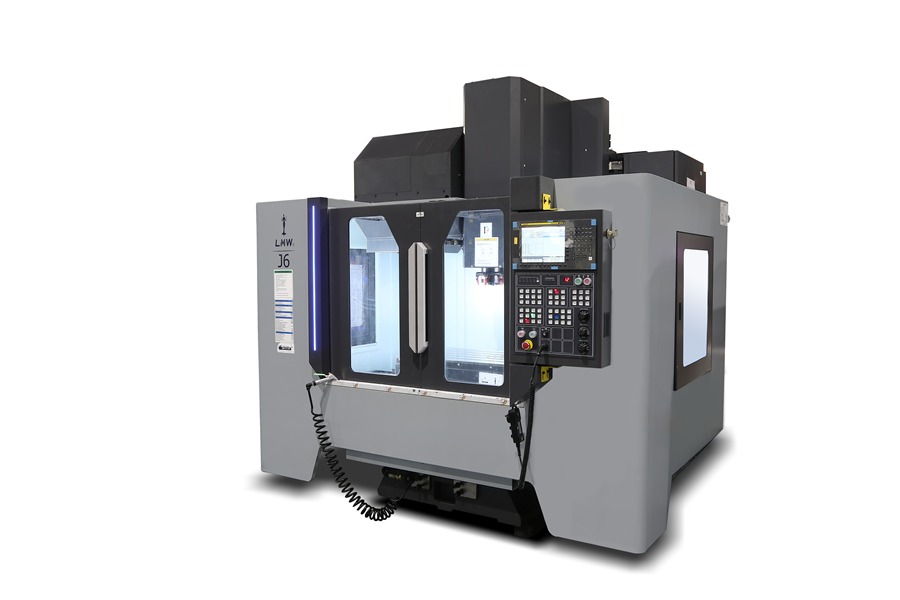

J6
| Description | Unit | J6 |
|---|---|---|
| TRAVEL | ||
| X/Y/Z Axis | mm | 1000 x 600 x 600 |
| Distance between Spindle nose & Table top | mm | 150-750 |
| TABLE | ||
| Table size | mm | 1200 x 600 |
| Table loading capacity | kgs | 800 |
| T Slot size x Pitch | nos. x mm x mm | 5 x 18 x 100 |
| SPINDLE | ||
| Spindle speed | rpm | 8000(10000/12000)* |
| Spindle bore taper | type | BBT 40(BT 40)* |
| Spindle motor power (Cont./S2/S3) |
kw | 11/15/18.5# |
| Max. Spindle Torque | Nm | 52.5/70/95.5/118# |
| FEED SYSTEM | ||
| Rapid traverse rate ( X / Y / Z ) - Axis | m/min | 36/36/36 |
| Cutting feed rate | m/min | 10 |
| Dia. x Pitch of ball screw | mm | ∅40 x 12 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos | 24 |
| Tool shank configuration | type | BT40 |
| Max. Tool dia with adjacent tool | mm | 80 |
| Max. Tool dia without adjacent tool | mm | 150 |
| Max. tool length | mm | 250 |
| Max. tool weight | kgs | 8 |
| Tool change time (tool to tool) | sec | 1.9 |
| MACHINE SIZE | ||
| W x D x H | mm | 2535 x 3110 x 2945 |
| Weight | kgs | 5500 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | mm | 0.01 |
| Repeatability | mm | ±0.003 |
| CNC SYSTEM | ||
| Controller | Type | Mitsubishi/Siemens/Fanuc |
