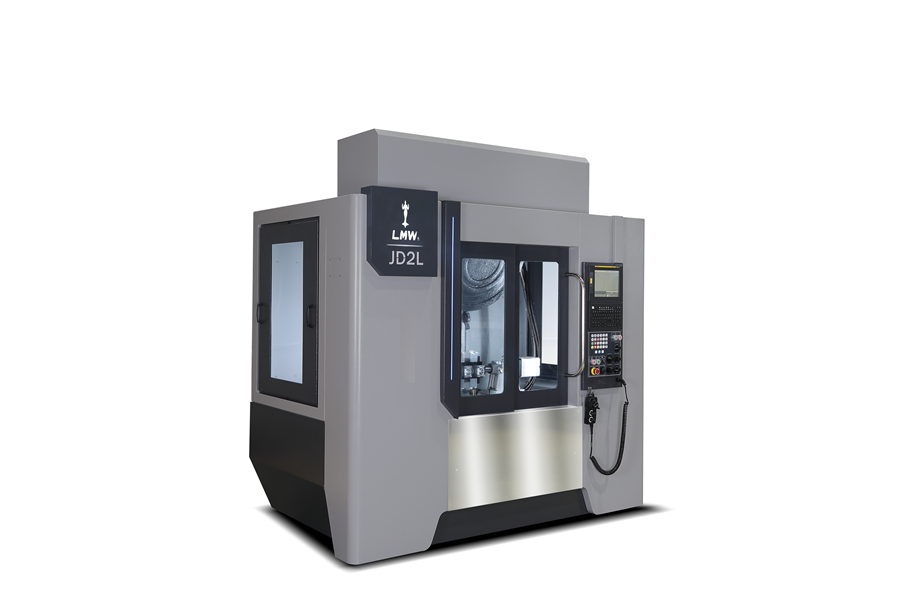

JD2L
NEW | Description | Unit | JD2L |
|---|---|---|
| TRAVEL | ||
| X/Y/Z Axis | mm | 700 x 400 x 320 |
| TABLE | ||
| Table size | mm | 850 x 400 |
| Table loading capacity | kgs | 300 |
| SPINDLE | ||
| Spindle speed | rpm | 12000 |
| Spindle bore taper | type | BT 30 |
| Spindle Motor Power (Cont. / Inter.) | kW | 3.7/5.5/7.5 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 17.7/23.6/35/47.8 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 48/48/48 |
| Guideways | - | LM Guides |
| AUTOMATIC TOOL CHANGER | ||
| Type | - | Pocket Tilting |
| No. of tools | nos | 21 |
| Max. tool length | mm | 200 |
| Tool change time (tool to tool) | sec | 1.7 |
| GENERAL | ||
| Floor space | m² | 6 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
