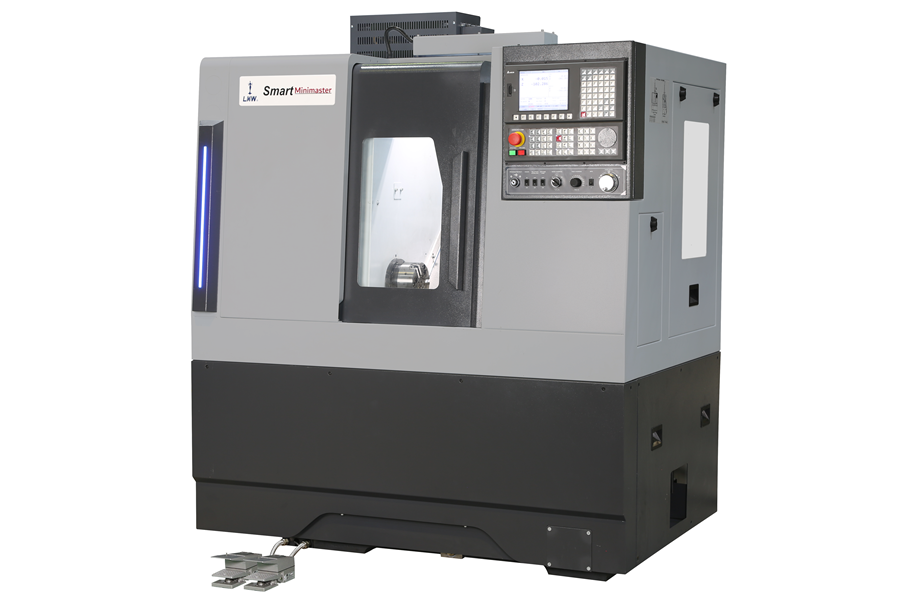

Smart Minimaster
NEW | Description | Unit | SMART MINIMASTER |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 350 |
| Chuck dia, max | mm | 135 |
| Max. Turning Diameter | mm | 150 |
| Max.Turning Length | mm | 200 |
| Admit Between Centres | mm | 286 |
| Spindle | ||
| Spindle nose | type | Flat (Dia: 110) |
| Hole through Spindle | Mm | 36 |
| Maximum Spindle.speed | rpm | 6000 |
| Spindle motor power (Cont./S3 25%) | Kw | Delta-3.7/5.5 |
| FEED | ||
| Inclination of Carriage | mm | 45°to Horizontal Plane |
| Cross Travel X - Axis | mm | 105 |
| Longitudinal Travel Z - Axis | mm | 250 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 30 |
| TURRET | ||
| No. of Stations | Nos | 8 |
| Tool Shank Size | mm | 20 x 20 |
| Maximum Boring Bar Diameter | mm | Ø 32 |
| Turret Indexing | Type | Hydraulic |
| Turret Indexing Time | Sec | Less than 0.1 |
| TAILSTOCK | ||
| Quill Diameter | mm | 40 |
| Quill Stroke | mm | 60 |
| Quill Taper | mm | MT-3 |
| Tailstock basestroke | mm | 130 |
| CNC SYSTEM | ||
| CNC System | Type | DELTA |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 1575x1126x1700 |
| Machine Weight (approx.) | kg | 1800 |
| Foot Print | m2 | 1.77 |
