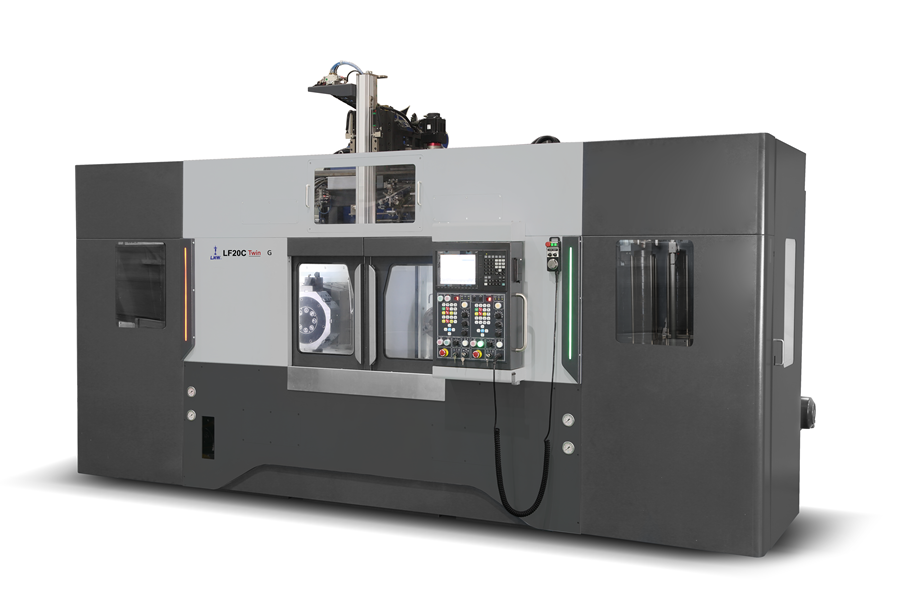

LF20C Twin G
| Description | Unit | LF20C Twin G |
|---|---|---|
| Capacity (Twin) | ||
| Max. Swing over cover | mm | 325 |
| Maximum Turning Diameter | mm | 240 |
| Maximum Turning Length | mm | 117 |
| Chuck Size | mm | 210 |
| SPINDLE (Twin) | ||
| Spindle Nose | - | A2-6 |
| Maximum bar capacity | mm | 51 |
| Maximum Spindle speed | rpm | 4000 |
| Motor Power (Cont. / 15 min) | kW | 7.5/11 |
| Turrets (Twin) | ||
| No. of Stations | Nos | 8 |
| Tool Shank size | mm | 25 x 25 |
| Maximum boring bar capacity | mm | 40 |
| Indexing time | sec | 1.0 |
| Feed System | ||
| Cross travel (X - Axis) | mm | 200 |
| Longitudinal travel (Z - Axis) | mm | 160 |
| Rapid Traverse, X & Z Axes | m/min | 24 |
| Guideways on all axes | type | Roller LM Guide |
| Machine Size | ||
| Length x Breadth x Height | mm | 3481 x 4640 x 2073 |
| Weight (Approx.) | Kgs | 8000 |
| CNC SYSTEM | ||
| Controller | Type | Mitsubishi |
| Gantry Loading / Unloading | ||
| Maximum work weight | Kgs | 3 x 2 |
| Maximum work size | mm | Ø100 x 32 |
| Max. Rapid traverse (GX / GY / GZ) | m/min | 100 / 60 / 100 |
| Max. stroke (GX / GY / GZ) | mm | 4000 / 150 / 1100 |
