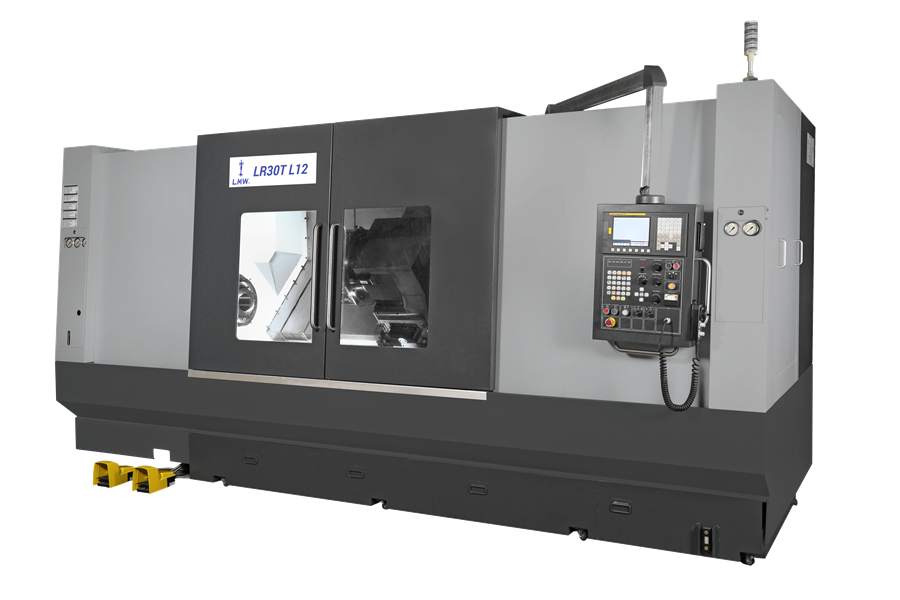

LR30T L12
| Description | Unit | LR30T L12 |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 680 |
| Chuck dia. Max | mm | 304 |
| Max.Turning Diameter | mm | 470 |
| Max.Turning Length | mm | 1200 |
| Admit Between Centres | mm | 1462 |
| SPINDLE | ||
| Spindle nose | type | A2-8 |
| Hole through Spindle | mm | 77 |
| Spindle Speed | rpm | 3500 |
| Spindle Motor Power (30min/Cont.) | kw | 15 / 18.5 |
| FEED SYSTEM | ||
| Inclination of Carriage | deg | 45o to Horizontal Plane |
| Cross Travel X - Axis | mm | 262 |
| Longitudinal Travel Z - Axis | mm | 1260 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 24 |
| TURRET | ||
| No. of Stations | nos. | 8 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 50 |
| Turret Indexing | Type | Bi-directional |
| Turret Indexing Time | Sec | 1.5 |
| TAILSTOCK | ||
| Quill Diameter | mm | 85 |
| Quill Stroke | mm | 120 |
| Quill Taper. | Type | MT -4 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| Machine Size | ||
| Front x Side x Height | mm | 4405 x 2100 x 2498 |
| Machine Weight (Approx) | kg | 7500 |
