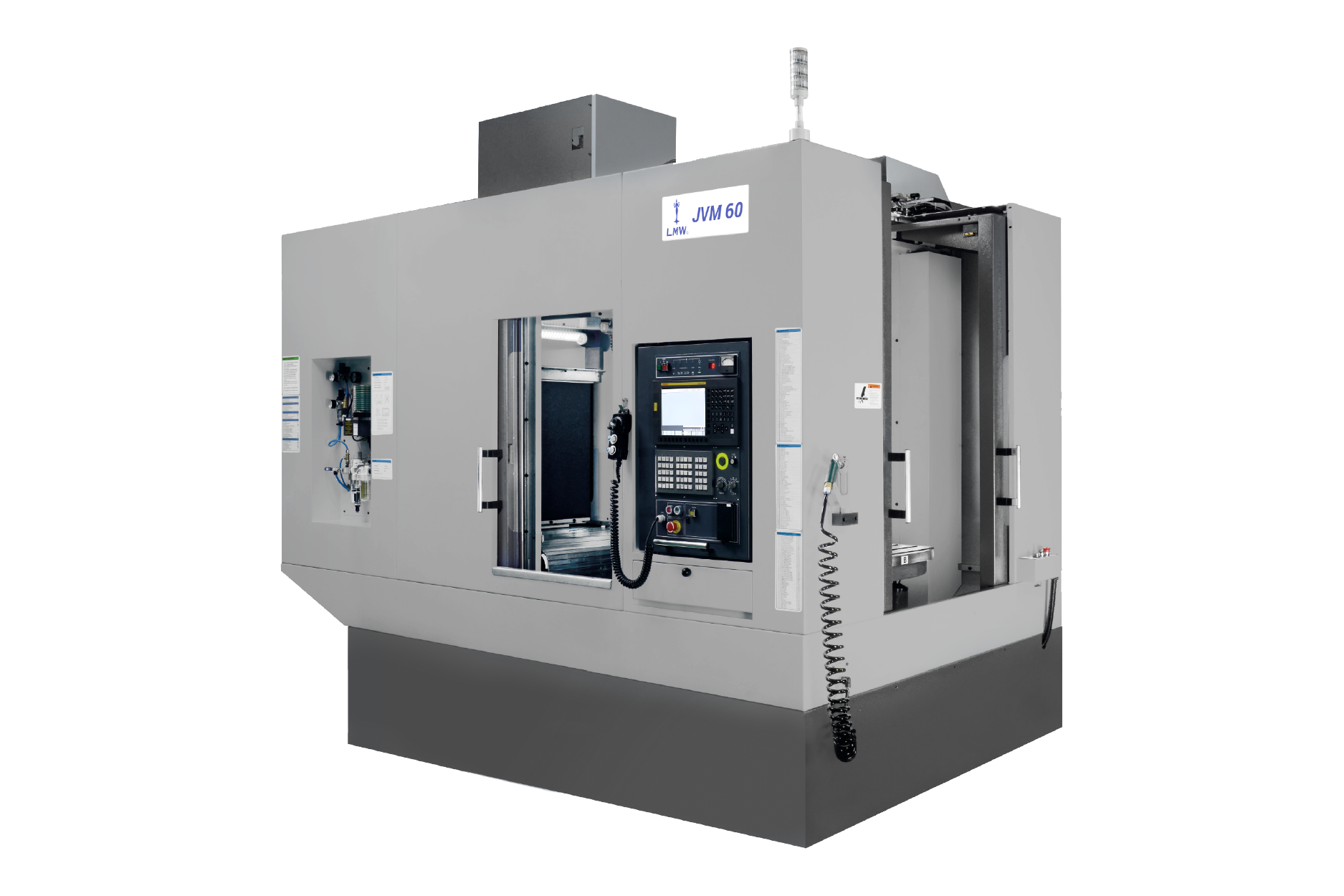

JVM 60
| Description | Unit | JVM 60 |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 640 x 460 x 600 |
| Distance between Spindle nose & Table top | mm | 200 – 800 |
| TABLE | ||
| Table Size | mm | 700 x 500 |
| Pallet Size | mm | (2-700 x 500) |
| Table Loading Capacity | kg | 2 x 350 |
| T Slot size x Pitch | nos. x mm x mm | 2 x 18 x 100 |
| SPINDLE | ||
| Max. Spindle Speed | rpm | 6500 |
| Spindle Bore Taper | Type | BT40 |
| Spindle Motor Power (Cont. / Inter.) | kw | 7.5/11 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 64/93 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 30 x 30 x 30 |
| Cutting feed rate | m/min | 10 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools / Tool Selection | nos. | 20 |
| Tool Shank Configration | Type | BT-40 |
| Max. tool diameter with adjacent tool | mm | 80 |
| Max. tool diameter without adjacent tool | mm | 150 |
| Max. Tool length | mm | 300 |
| Max. Tool weight | kg | 7 |
| Tool change time (tool to tool) | sec | 3 |
| MACHINE SIZE | ||
| L x B x H | mm | 3320 x 2380 x 3050 |
| Weight | kg | 6500 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | mm | 0.010 |
| Repeatability | mm | ±0.003 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc Only |
