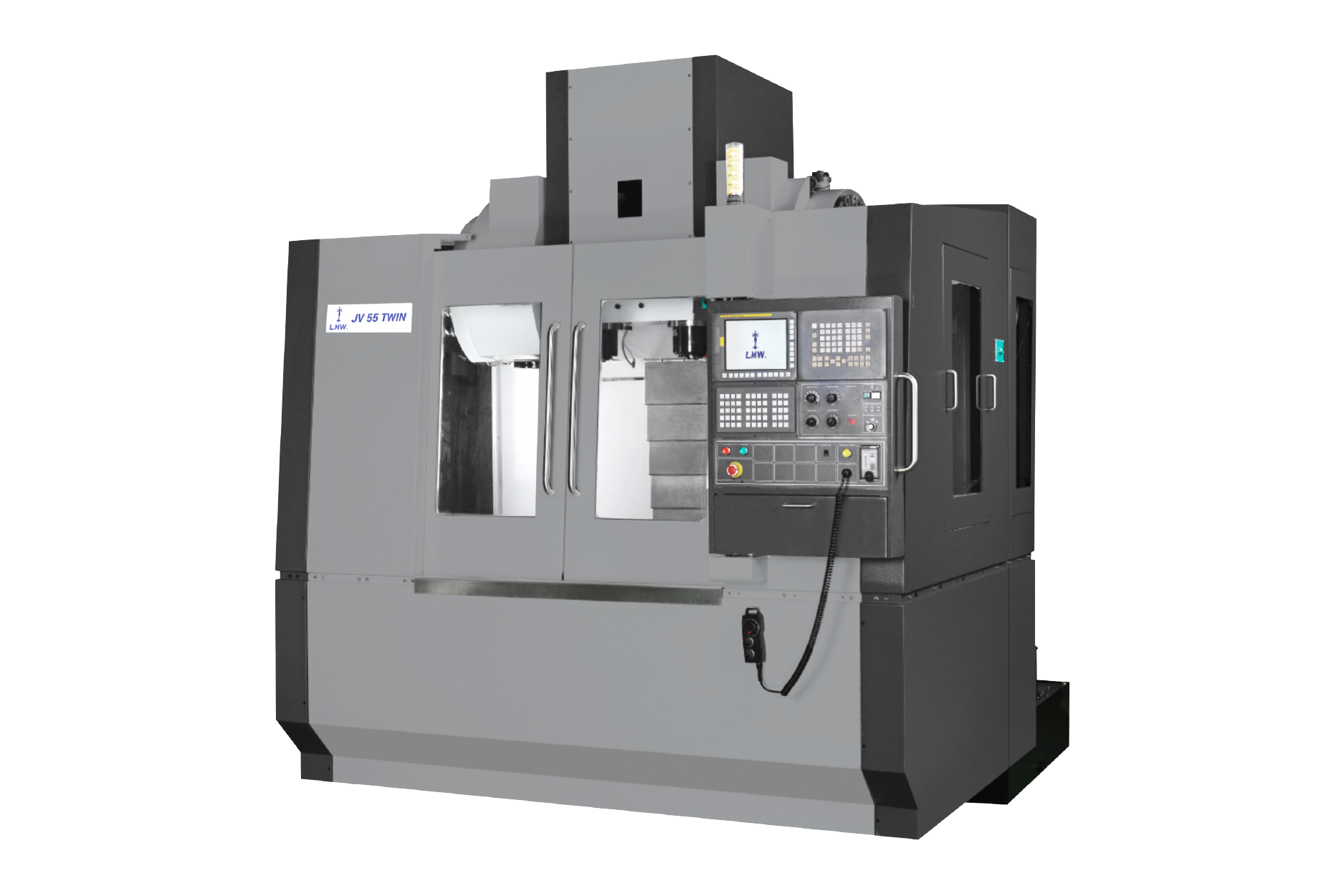

JV 55 TWIN
| Description | Unit | JV 55 TWIN |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 800 x 450 x 600 |
| Distance between Spindle nose & Table top | mm | 150-750 |
| TABLE | ||
| Table Size | mm | 1050 × 450 |
| Table Loading Capacity | kgs | 500 |
| T Slot size x Pitch | nos. x mm x mm | 4 x 18 x 100 |
| SPINDLE | ||
| Spindle Speed | rpm | 10000 |
| Spindle Bore Taper | Type | BBT 40 |
| Spindle Motor Power (Cont. / Inter.) | kw | 5.5 / 7.5 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 26.3/47 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 36/36/24 |
| Cutting feed rate | m/min | 10 |
| Dia. x Pitch of ball screw | mm | ∅ 40 x 12 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos. | 20 |
| Tool Shank Configration | Type | BT-40 |
| Max. tool diameter with adjacent tool | mm | 80 |
| Max. tool diameter without adjacent tool | mm | 125 |
| Max. Tool length | mm | 350 |
| Max. Tool weight | kg | 8 |
| Tool change time (tool to tool) | sec | 3.5 |
| MACHINE SIZE | ||
| L x B x H | mm | 2550 x 3030 x 2795 |
| Weight | kgs | 5500 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | mm | ±0.010 |
| Repeatability | mm | ±0.003 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc Only |
