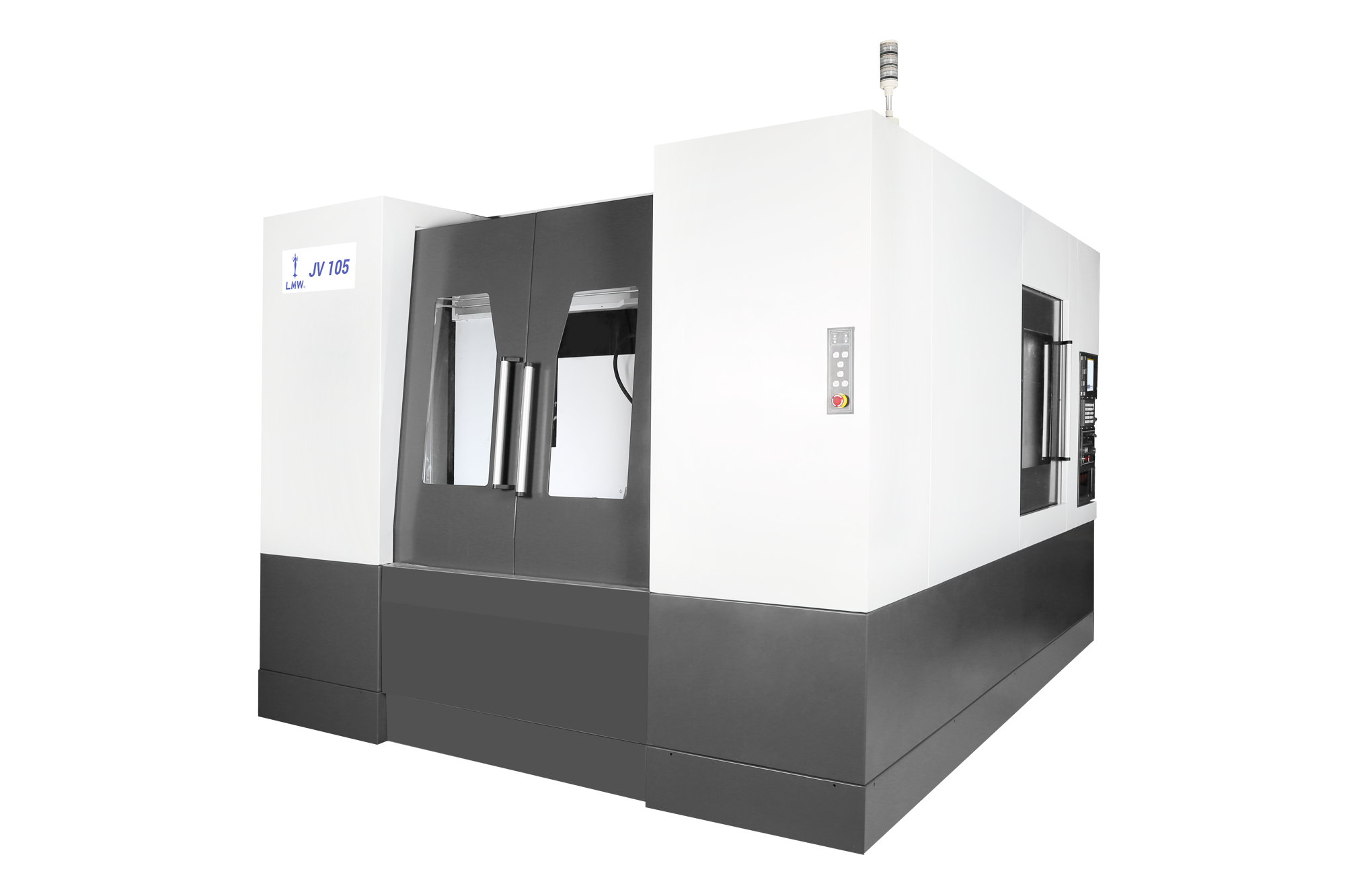

JV 105
| Description | Unit | JV 105 RAPC |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 1020 x 660 x 600 |
| Distance between Spindle nose & Table top | mm | 150-750 |
| TABLE/ROTARY PALLET | ||
| Pallet Size | mm | 850 x 500 |
| No. of Pallets | nos. | 2 |
| Pallet Change | Type | Hydraulic Rotary |
| T-Slots Size x Pitch | nos. x mm x mm | 5 x 18 x 100 |
| Pallet Change Time | sec | 14 |
| Max. Load on Pallet | kgs | 500 / Pallet |
| SPINDLE | ||
| Spindle Speed | rpm | 8000 |
| Spindle Bore Taper | Type | BT40 |
| Spindle Motor Power (Cont. / Inter.) | kw | 11/15 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 52.5/95.5 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 36/36/24 |
| Cutting feed rate | m/min | 10 |
| Dia. x Pitch of ball screw (X - Axis) | mm | ∅ 32 x 12 |
| (Y & Z -Axis) | mm | ∅ 40 x 12 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools / Tool Selection | nos. | 20 |
| Tool Shank Configration | Type | BT-40 |
| Max. tool diameter with adjacent tool | mm | 80 |
| Max. tool diameter without adjacent tool | mm | 125 |
| Max. Tool length | mm | 250 |
| Max. Tool weight | kg | 8 |
| Tool change time (tool to tool) | sec | 3.5 |
| MACHINE SIZE | ||
| L x B x H | mm | 3400 x 4060 x 2800 |
| Weight | kg | 10000 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | mm | ±0.010 |
| Repeatability | mm | ±0.003 |
| CNC SYSTEM | ||
| Controller | Type | Mitsubishi/Siemens/Fanuc |
