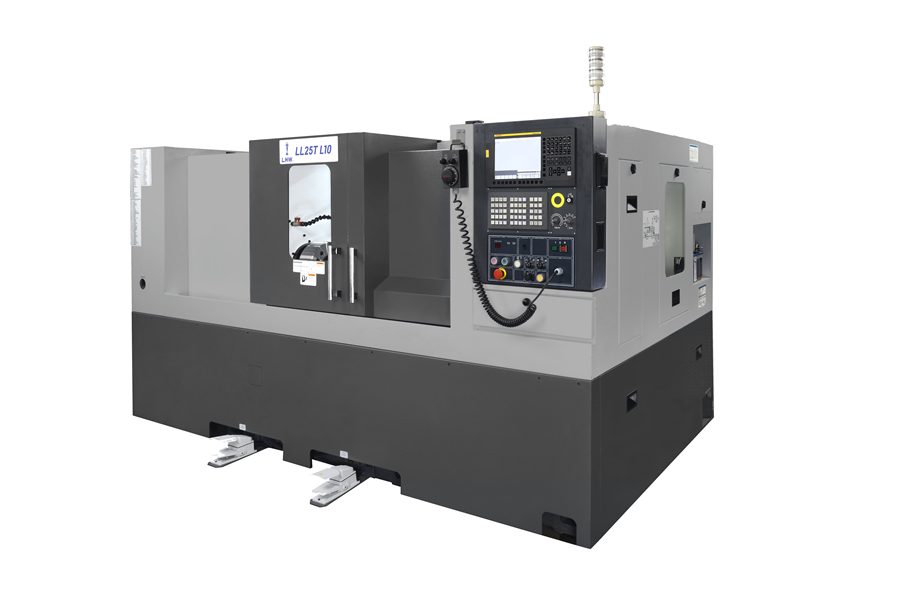

LL25T L10
Product Description
The LL25T L10 turning center is designed for high-efficiency turning to meet market demands. It has 10’’ chuck, turning diameter of up to 320 mm and a turning length of up to 1020 mm. This machine offers versatility for a wide range of turning applications for industries like pumps, valves, oil and gas, industrial machinery, general engineering, etc...
Product Specification
| Description | Unit | LL25T L10 |
|---|
| Swing over bed | mm | 510 |
| Chuck dia. Max | mm | 254 |
| Max. Turning Diameter | mm | 320 |
| Max.Turning Length | mm | 1020 |
| Admit Between Centres | mm | 1160 |
| Spindle nose | type | A2-6 |
| Hole through Spindle | Mm | 77 |
| Spindle Speed | rpm | 3500 |
| Spindle Motor Power (Cont./15 Min) | Kw | 11 / 15 |
| Inclination of Carriage | deg | 300 to Horizontal Plane |
| Cross Travel X - Axis | mm | 185 |
| Longitudinal Travel Z - Axis | mm | 1100 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 36 |
| No. of Stations | Nos | 8 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Bi Directional |
| Turret Indexing Time | Sec | Less than 1 |
| Quill dia. | mm | 85 |
| Quill stroke | mm | 100 |
| Quill taper | mm | MT-5 |
| Controller | Type | Fanuc (Siemens)* |
| Front x Side x Height | mm | 3055 x 1695 x 1920 |
| Weight | kg | 4200 |
