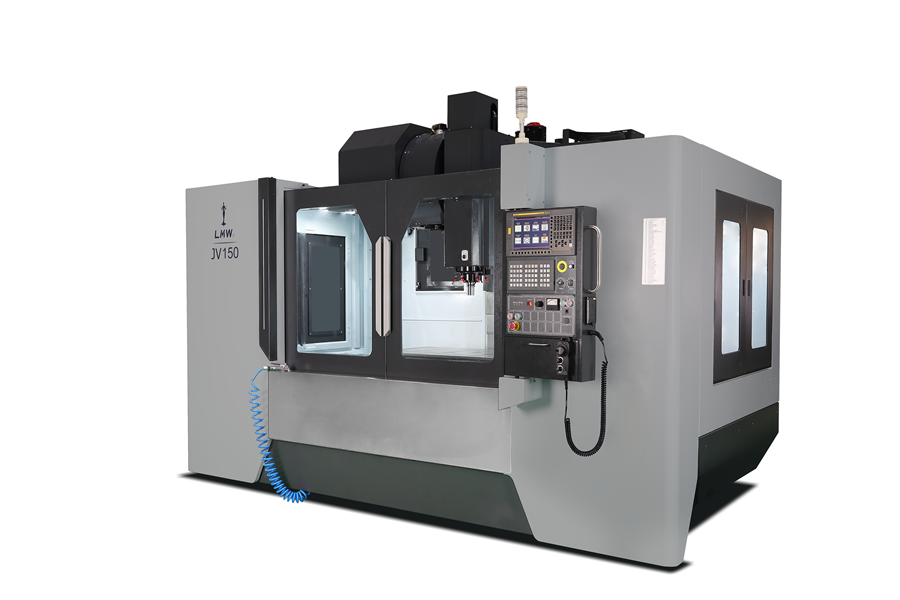

| Description | Unit | JV 150 |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 1550 x 760 x 760 |
| Distance between Spindle nose & Table top | mm | 150-910 |
| TABLE | ||
| Table Size | mm | 1700x700 |
| Table Loading Capacity | kgs | 1300 |
| T Slot size x Pitch | nos. x mm x mm | 5 x 18 x 125 |
| SPINDLE | ||
| Max. Spindle Speed | rpm | 10000 |
| Spindle Bore Taper | Type | BBT 40 |
| Spindle Motor Power (Cont. / Inter.) | kw | 15/18.5 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 71.6/95.5/118 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 24 / 30 / 24 |
| Cutting feed rate | m/min | 10 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos. | 24 |
| Tool Shank Configration | Type | MAS BT40/45° |
| Max. tool diameter with adjacent tool | mm | 80 |
| Max. tool diameter without adjacent tool | mm | 125 |
| Max. Tool length | mm | 300 |
| Max. Tool weight | kg | 8 |
| Tool change time (tool to tool) | sec | 2.2 |
| MACHINE SIZE | ||
| L x B x H | mm | 3620 x 3530 x 3125 |
| Weight | kgs | 10000 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | microns | 0.02 |
| Repeatability | microns | 0.01 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc 0i-MF Plus |
