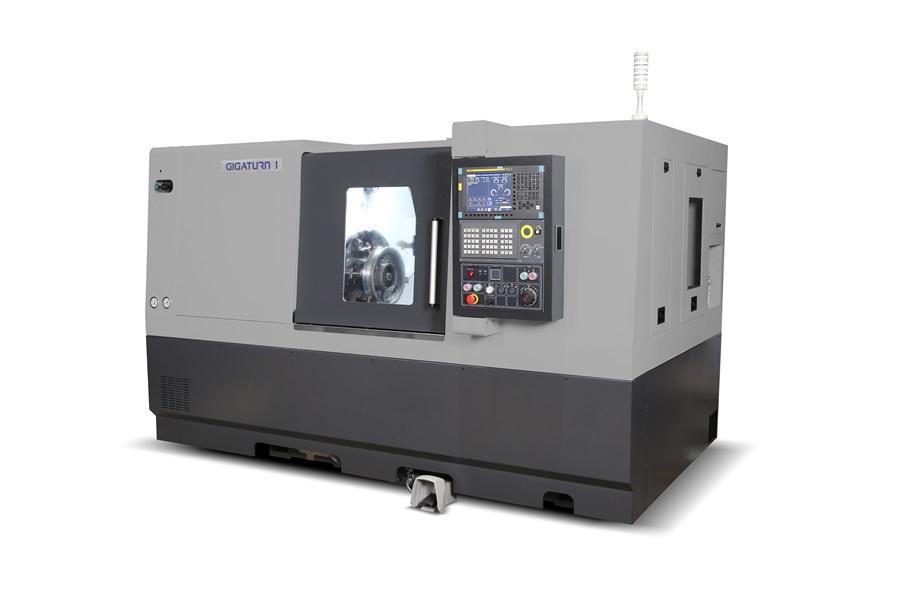

Gigaturn I
| Description | Unit | Gigaturn I |
|---|---|---|
| Capacity | ||
| Swing over Bed | mm | 680 |
| Chuck Size | mm | 450 |
| Maximum Turning Diameter | mm | 510 |
| Maximum Turning Length | mm | 590 |
| SPINDLE | ||
| Spindle Nose | Type | A2-11 |
| Hole through Spindle | mm | 86 |
| Spindle Speed | rpm | 2000 |
| Spindle Motor Power (Cont./ Inter.) | kW | 15 / 18.5 |
| FEED SYSTEM | ||
| Inclination of Carriage | Deg | 30° to Horizontal Plain |
| Travel X - Axis | mm | 295 |
| Travel Z - Axis | mm | 750 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 36 |
| TURRET | ||
| No. of Stations | Nos | 12 |
| Tool Shank Size | mm | 25 X 25 |
| Maximum Boring Bar Diameter | mm | Ø50 |
| Turret Indexing | Type | Hydraulic |
| Turret Indexing Time | Sec | 1.2 |
| Tailstock | ||
| Quill Diameter | mm | 85 |
| Quill Stroke | mm | 120 |
| Quill Taper | Type | MT-5 |
| Machine Size | ||
| L x B x H | mm | 2915 x 1875 x 2085 |
| Weight | Kgs | 5000 |
| CNC SYSTEM | ||
| Controller | - | Fanuc |
