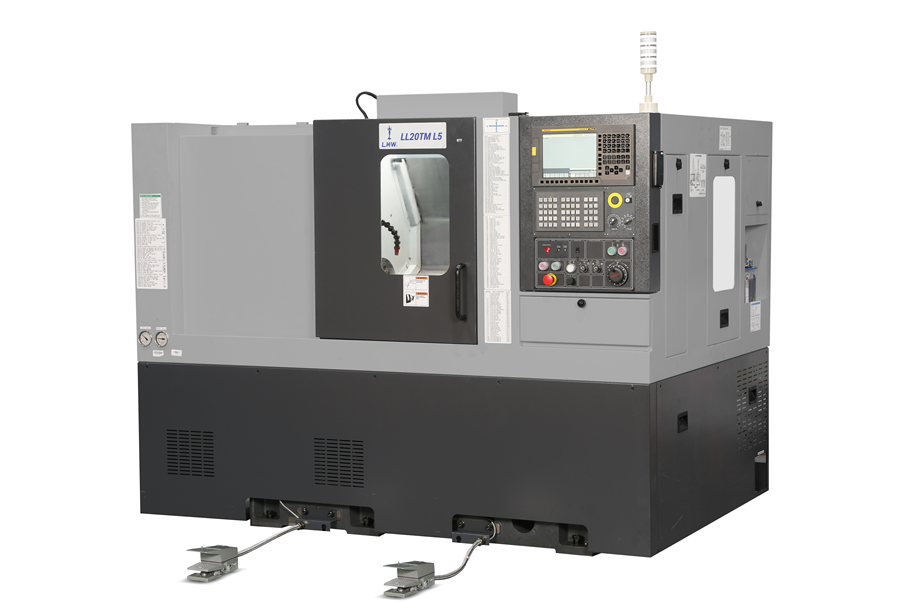

LL20TM L5
| Description | Unit | LL20TM L5 |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 510 |
| Chuck dia. Max | mm | 210 |
| Max. Turning Diameter | mm | 260 |
| Max.Turning Length | mm | 455 |
| Admit Between Centres | mm | 625 |
| SPINDLE | ||
| Spindle nose | type | A2-6 |
| Hole through Spindle | Mm | 61 |
| Maximum Spindle.speed | rpm | 4000 |
| Spindle motorpower (cont./15min) | Kw | 7.5 / 11 |
| FEED | ||
| Travel X - Axis | mm | 175 |
| Travel Z - Axis | mm | 530 |
| Rapid traverse (X/Z) - Axes | m/min | 30/36 |
| TURRET | ||
| No. of Stations | Nos | 12 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Servo |
| TAILSTOCK | ||
| Quill Diameter | mm | 75 |
| Quill Stroke | mm | 100 |
| Quill Taper | type | MT-4 |
| CNC SYSTEM | ||
| CNC System | Type | Fanuc/Siemens |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 2465 x 1770 x 1920 |
| Machine Weight (approx.) | kgs | 4000 |
