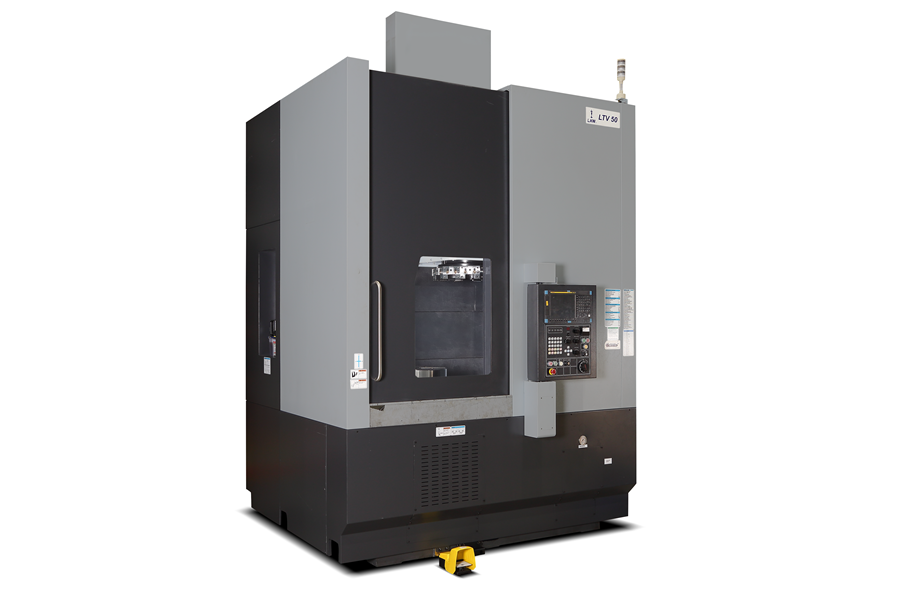

LTV 50
| Description | Unit | LTV 50 |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 880 |
| Chuck dia. Max | mm | 530 |
| Max. Turning Diameter | mm | 800 |
| Max.Turning Length | mm | 800 |
| SPINDLE | ||
| Spindle nose | type | A2-11 |
| Hole through Spindle | Mm | 100 |
| Spindle Speed | rpm | 1800 |
| Spindle Motor Power (Cont./30 min) | kw | 18.5 / 22 |
| FEED | ||
| Cross travel X-axis | mm | 445 |
| Longitunal travel Z-axis | mm | 837 |
| Rapid traverse rate X/Z axes | m/min | 20/12 |
| TURRET | ||
| No. of Stations | nos. | 8 |
| Tool Shank Size | mm | 32 x 32 |
| Maximum Boring Bar Diameter | mm | 50 |
| Turret Indexing | Type | Bi-directional |
| Turret Indexing Time | sec | 1.5 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| Machine Size | ||
| Front x Side x Height | mm | 2342 x 2600 x 4555 |
| Weight | kg | 12000 |
