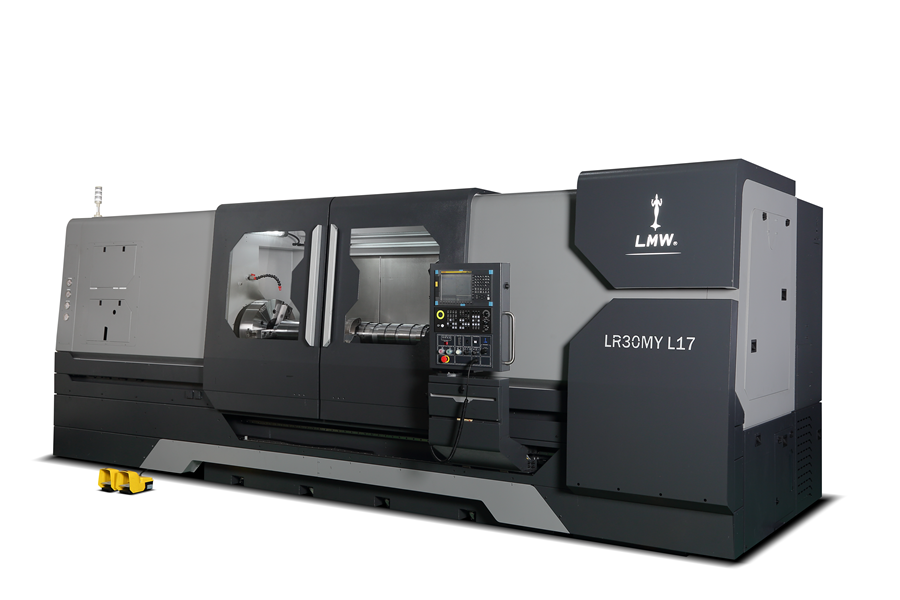

LR30MY L17
NEW| Description | Unit | LR30MY L17 |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 800 |
| Chuck dia. | mm | 533 |
| Max. Turning Diameter | mm | 520 |
| Max.Turning Length | mm | 1700 |
| Spindle | ||
| Spindle nose | type | A2-15 |
| Hole through Spindle | mm | 181 |
| Spindle speed | rpm | 1250 |
| Spindle Motor Power (Cont./30 min) | kw | 18.5/22 |
| FEED | ||
| Cross Travel X - Axis | mm | 335 |
| Y - Axis Travel | mm | ±60 |
| Longitudinal Travel Z - Axis | mm | 1860 |
| Rapid traverse (X/Z) - Axes | m/min | 24/8/10 |
| TURRET | ||
| No. of Stations | nos | 12 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 50 |
| Turret Indexing | Type | Bi-directional |
| Indexing Time (per station) | Sec | <1.0 |
| Rotary Tool Speed | rpm | 6000 |
| Rotary Tool Motor Power | kW | 5.2 |
| TAILSTOCK | ||
| Quill Dia. | mm | 110 |
| Quill Stroke | mm | 110 |
| Quill Taper | - | MT-5 |
| GENERAL | ||
| Floor space | m² | 15 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
