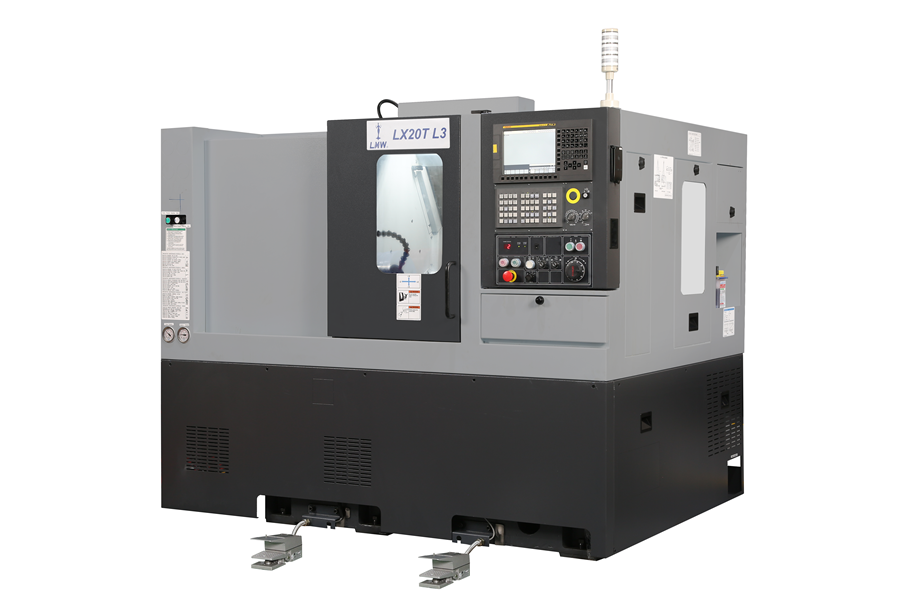

LX20T L3
| Description | Unit | LX20T L3 |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 510 |
| Chuck dia, max | mm | 210 |
| Max. Turning Diameter | mm | 320 |
| Max.Turning Length | mm | 310* |
| Admit between Centres | mm | 440 |
| Spindle | ||
| Spindle nose | type | A2-6 |
| Hole through Spindle | mm | 61 |
| Spindle Speed | rpm | Fanuc - 3000 /Siemens -3500 |
| Spindle motor power -15 min/Cont.(S6-40%/Cont.) | kw | Fanuc - 11 / 7.5/Seimens - 10.5 / 7 |
| FEED | ||
| Inclination of Carriage | mm | 30oto Horizontal Plane |
| Cross Travel X - Axis | mm | 185 |
| Longitudinal Travel Z - Axis | mm | 370 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 30 |
| TURRET | ||
| No. of Stations | Nos | 8 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Bi - directional |
| Turret Indexing Time | sec | 1.0 |
| TAILSTOCK | ||
| Quill dia. | mm | 75 |
| Quill stroke | mm | 100 |
| Quill taper | type | MT-4 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc / Siemens |
| Machine Size | ||
| Front x Side x Height | mm | 2065 x 1650 x 1920 |
| Weight | kg | 3200 |
