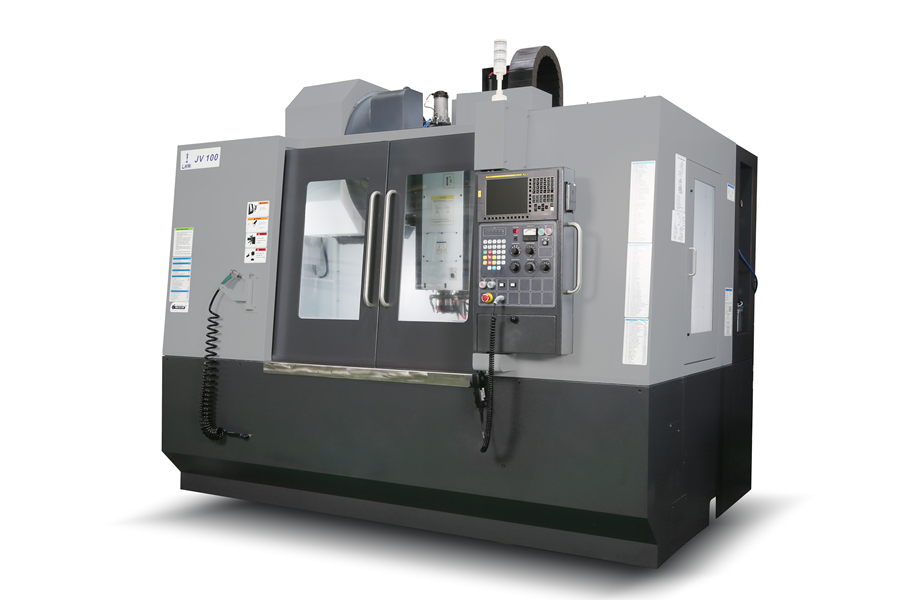

JV 100
| Description | Unit | JV 100 |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 1050 x 540 x 600 |
| Distance between Spindle nose & Table top | mm | 125 – 725 |
| TABLE | ||
| Table Size | mm | 1200 × 560 |
| Table Loading Capacity | kgs | 800 |
| T Slot size x Pitch | nos. x mm x mm | 5 x 18 x 100 |
| SPINDLE | ||
| Max. Spindle Speed | rpm | 5000 |
| Spindle Bore Taper | Type | BT 40 |
| Spindle Motor Power (Cont. / Inter.) | kw | 11 / 15 |
| Max. Spindle Torque (Cont. / Inter.) | Nm | 78/143 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 36 / 36 / 24 |
| Cutting feed rate | m/min | 20 |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos. | 20 |
| Tool Shank | Type | BT-40 |
| Max. tool diameter with adjacent tool | mm | 80 |
| Max. tool diameter without adjacent tool | mm | 125 |
| Max. Tool length | mm | 250 |
| Max. Tool weight | kg | 8 |
| Tool change time (tool to tool) | sec | 3.5 |
| MACHINE SIZE | ||
| L x B x H | mm | 3100 x 2820 x 3165 |
| Weight | kgs | 5500 |
| ACCURACY | ||
| Positioning Accuracy (X/Y/Z) - Axis | mm | 0.010 |
| Repeatability | mm | ±0.003 |
| CNC SYSTEM | ||
| Controller | Type | Mitsubishi/Siemens/Fanuc |
