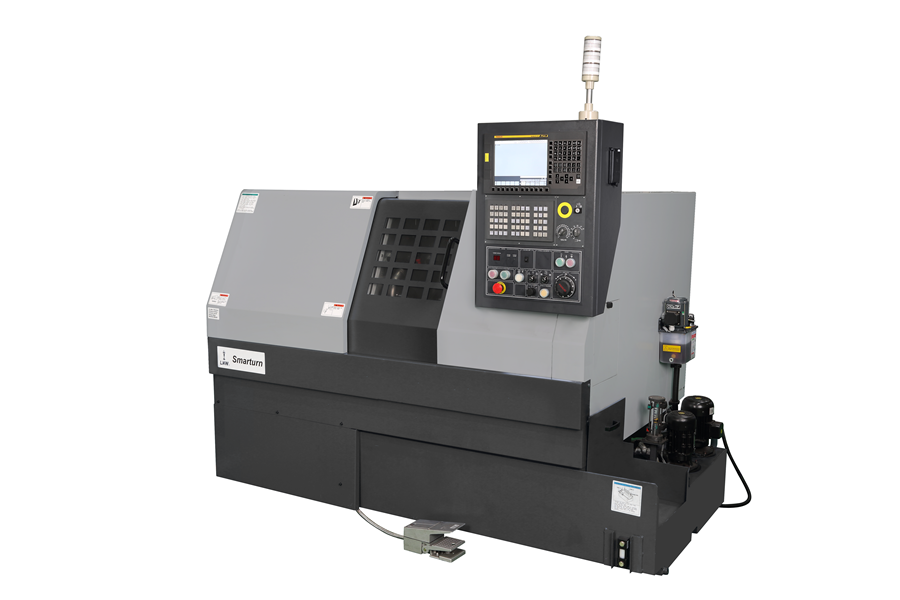

SMARTURN
| Description | Unit | SMARTURN |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 480 |
| Chuck dia. Max | mm | 169 |
| Max. Turning Diameter | mm | 200 |
| Max.Turning Length | mm | 262 |
| Admit Between Centres | mm | 345 |
| SPINDLE | ||
| Spindle nose | type | Flat (Dia: 140) |
| Hole through Spindle | Mm | 53 |
| Spindle Speed | rpm | 4500 |
| Spindle Motor Power | Kw | Siemens – 5.5 / 8.3 Fanuc – 5.5 / 7.5 Mitsubishi – 5.5 / 7.5 Delta – 5.5 / 7.5 |
| FEED | ||
| Inclination of Carriage | deg | 30°to Horizontal Plane |
| Cross Travel X - Axis | mm | 105 |
| Longitudinal Travel Z - Axis | mm | 320 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 30 |
| TURRET | ||
| No. of Stations | nos. | 8 |
| Tool Shank Size | mm | 20 x 20 |
| Maximum Boring Bar Diameter | mm | 32 |
| Turret Indexing | Type | Hydraulic |
| Turret Indexing Time | Sec | 0.8 to 1 |
| TAILSTOCK | ||
| Quill Diameter | mm | 65 |
| Quill Stroke | mm | 80 |
| Quill Taper | Type | MT-4 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc / Siemens / Mitsubishi / Delta |
| Machine Size | ||
| Front x Side x Height | mm | 2275 x 1640 x 1620 |
| Weight | kg | 2300 |
