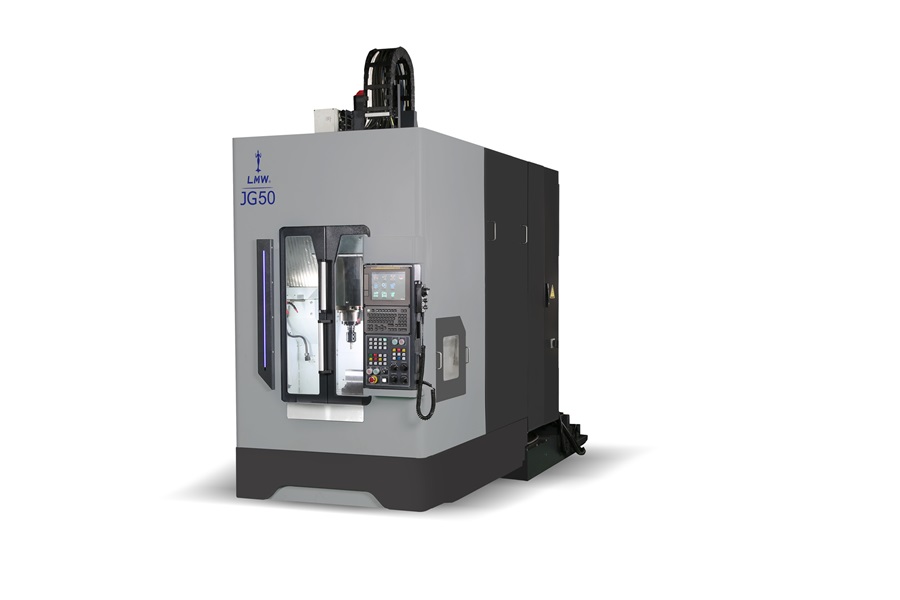

JG 50
| Description | Unit | JG 50 | |
|---|---|---|---|
| Stroke | |||
| X axis | mm | 500 | |
| Y axis | mm | 400 | |
| Z axis | mm | 400 | |
| TABLE | |||
| Table Size | mm | 600 x 400 | |
| No. of T Slots x Pitch | Nos. x mm x mm | 3 x 14 x 125 | |
| Maximum Load on Table | Kgs | 400 | |
| SPINDLE | |||
| Spindle Bore Taper | Type | HSK A50 | |
| Spindle Speed | rpm | 16000 | |
| Spindle Motor Power (Cont./Inter) |
kW | Low winding S1/S6 (10% -10 min) |
High winding S1/S2 (10 min) |
| 7.5 / 11 | 11/18.5 | ||
| Max. Spindle Torque (Cont./Inter) |
Nm | Low winding S1/S6 (10% -10 min) |
High winding S1/S2 (10 min) |
| 31.1 / 80.8 | 17.5/29.4 | ||
| FEED SYSTEM | |||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 60/60/60 | |
| Cutting Feed rate | m/min | 20 | |
| Guideways on all axes | Type | LM Guides | |
| AUTOMATIC TOOL CHANGER | |||
| No. of Tools | Nos | 26 | |
| Tool Shank | Type | HSK A50 | |
| Max. Tool dia with adjacent tool | mm | 80 | |
| Max. Tool length | mm | 320 | |
| Max. Tool weight | Kgs | 3.5 | |
| Tool change time (tool to tool) | Sec | 1 | |
| Coolant | |||
| Coolant Tank Capacity | Ltr | 400 | |
| MACHINE SIZE | |||
| Length x Breadth x Height | mm | 1300 x 4500 x 2900 | |
| Weight (Approx.) | Kgs | 6000 | |
| CNC System | |||
| Controller | Type | Fanuc | |
| ACCURACY | |||
| Positioning Accuracy | mm | ±0.004 | |
| Repeatability | mm | ±0.004 | |
