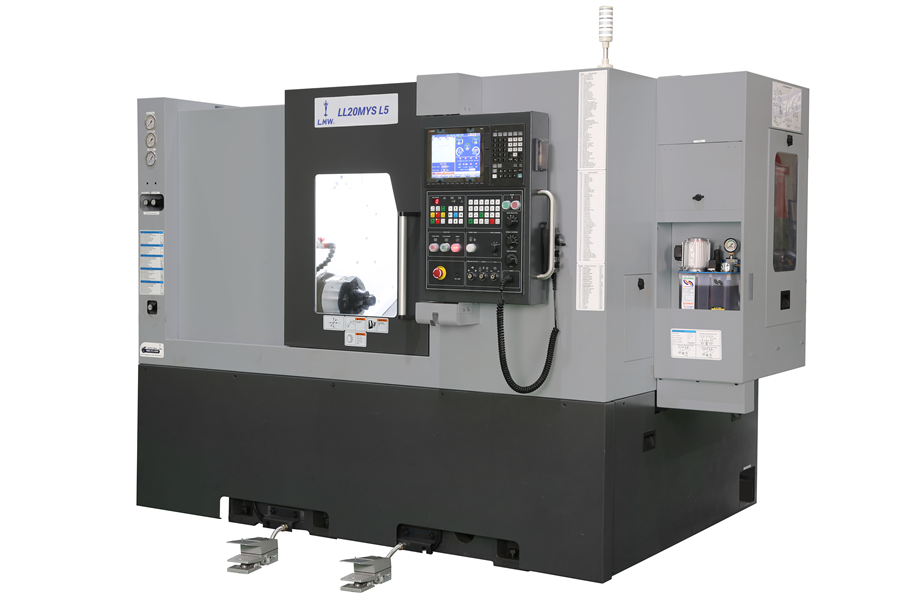

LL20MYS L5
| Description | Unit | LL20MYS L5 |
|---|---|---|
| Capacity | ||
| Swing over carriage | mm | 560 |
| Max. Turning Diameter | mm | 290 |
| Max.Turning Length | mm | 470 |
| Admit Between Centres | mm | 613 |
| Spindle | ||
| Spindle nose | type | A2-6 |
| Chuck dia. | mm | 210 |
| Hole through Spindle | mm | 61 |
| Maximum Spindle.speed | rpm | 4000 |
| Spindle motorpower | Kw | 11 / 7.5 |
| SUB SPINDLE | ||
| Spindle nose | type | A2-5 |
| Chuck dia. | mm | 165 |
| Hole through spindle | mm | 53 |
| Spindle speed | RPM | 5000 |
| Spindle motor power | KW | 7.5/5.5 |
| FEED | ||
| Inclination of Carriage | mm | 600 to Horizontal Plane |
| Travel X - Axis | mm | 173 |
| Travel Y - Axis | mm | ±50 |
| Travel Z - Axis | mm | 576 |
| Travel W - Axis | mm | 525 |
| Rapid traverse (X/Y/Z/W) - Axes | m/min | 30 / 15 / 30 / 15 |
| LIVE TOOL TURRET (BMT 55) | ||
| No. of stations | Nos | 12 |
| Tool shank size | mm | 25 x 25 |
| Max. Boring bar dia. | mm | 40 |
| Turret indexing | type | Servo |
| Turret indexing | sec | 1 |
| Driven motor power | Kw | 4.5 |
| CNC SYSTEM | ||
| CNC System | type | Fanuc |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 3242 x 2085 x 2010 |
| Machine Weight | mm | 4800 |
