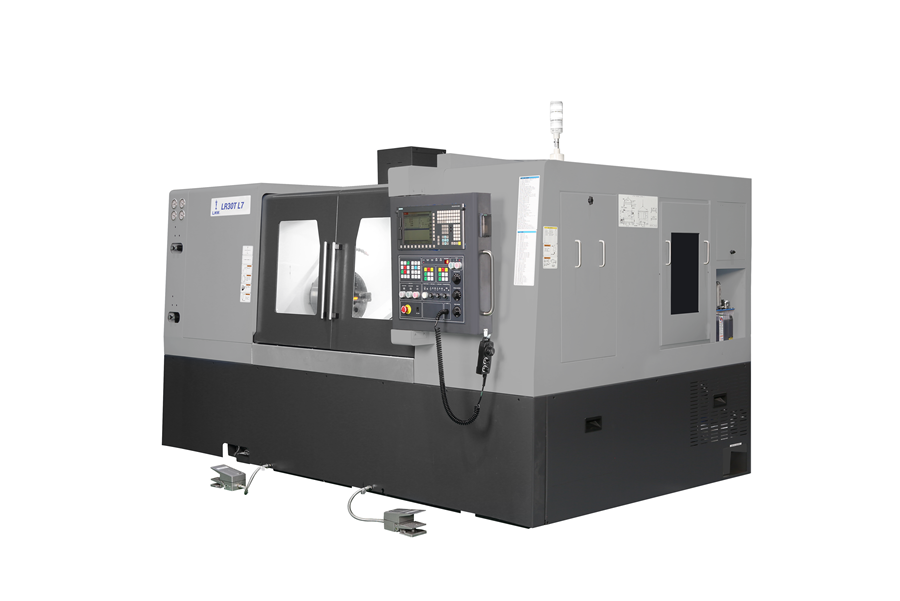

LR30T L7
| Description | Unit | LR30T L7 |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 680 |
| Chuck dia. Max | mm | 304 |
| Max. Turning Diameter | mm | 470 |
| Max.Turning Length | mm | 700 |
| Admit Between Centres | mm | 820 |
| SPINDLE | ||
| Spindle nose | type | A2-8 |
| Hole through Spindle | mm | 77 |
| Spindle Speed | rpm | 3500 |
| Spindle Motor Power (30min/Cont.) | kw | 15 / 18.5 |
| FEED | ||
| Inclination of Carriage | deg | 45o to Horizontal Plane |
| Cross Travel X - Axis | mm | 260 |
| Longitudinal Travel Z - Axis | m/min | 760 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 24 |
| TURRET | ||
| No. of Stations | nos. | 8 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 50 |
| Turret Indexing | Type | Bi-directional |
| Turret Indexing | sec | 1.5 |
| TAILSTOCK | ||
| Quill Diameter | mm | 85 |
| Quill Stroke | mm | 80 |
| Quill Taper. | Type | MT-3 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| Machine Size | ||
| Front x Side x Height | mm | 3015 x 1615 x 2240 |
| Weight | kg | 5200 |
| Material Removal Rate (MRR) | ||
| Diameter | mm | 151 |
| Cutting Speed | m/min | 200 |
| Spindle Speed | rpm | 422 |
| DOC | mm | 6 |
| Feed | mm/rev | 0.32 |
| Capacity | cc/min | 384 |
| Spindle Load | % | 95 |
