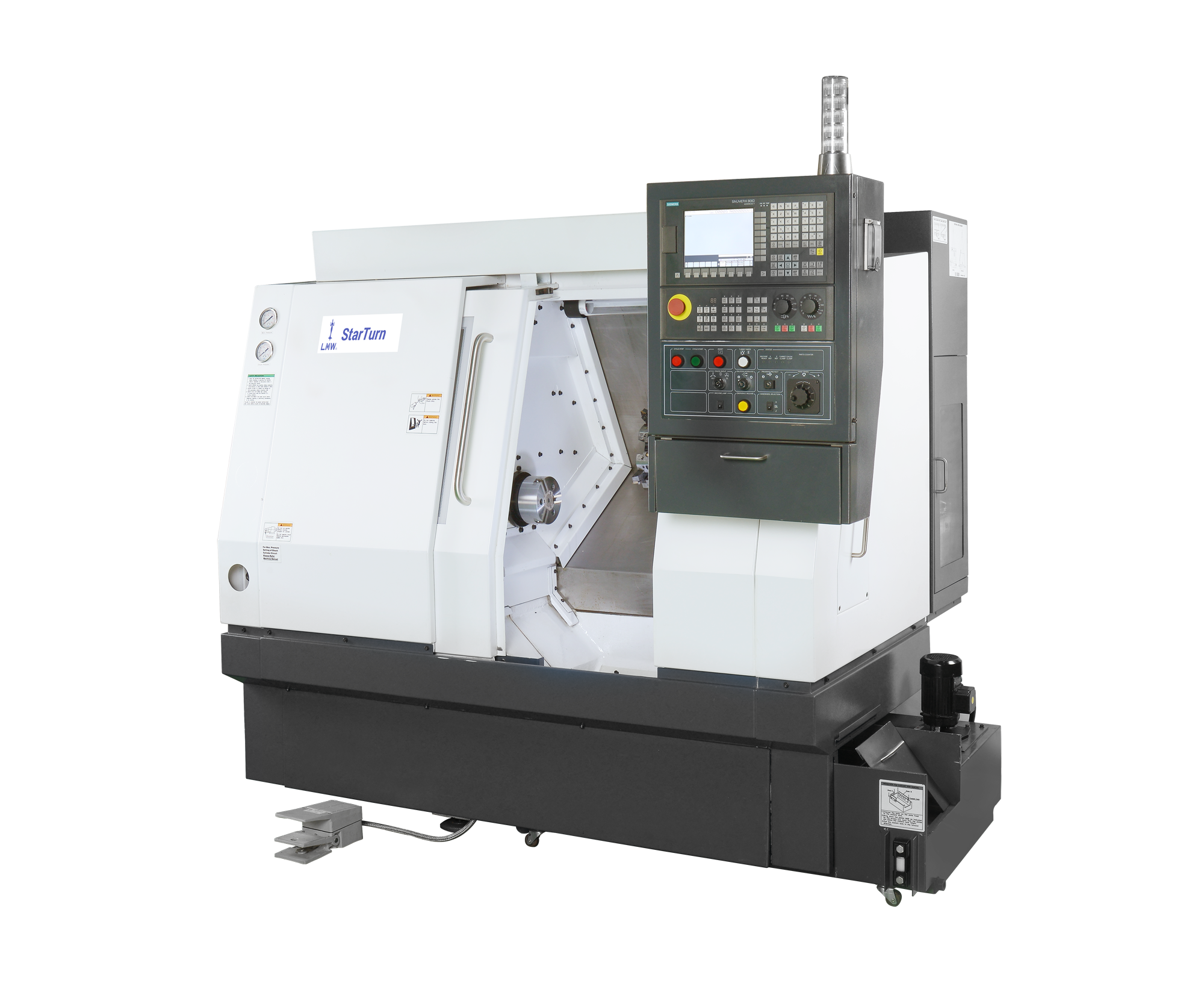

STARTURN
| Description | Unit | STARTURN |
|---|---|---|
| Capacity | ||
| Swing Over bed | mm | 480 |
| Chuck dia, max | mm | 135 |
| Max. Turning Diameter | mm | 200 |
| Max.Turning Length | mm | 200 |
| Admit Between Centres | mm | - |
| Spindle | ||
| Spindle nose | type | Flat (Dia: 110) |
| Hole through Spindle | mm | 36 |
| Spindle Speed | rpm | 6000 |
| Spindle Motor Power (Cont./S6 40%) (Cont./15mins) |
kw | Siemens - 3.7/5.5 Fanuc - 3.7/5.5 |
| FEED | ||
| Inclination of Carriage | deg | 30°to Horizontal Plane |
| Cross Travel X - Axis | mm | 105 |
| Longitudinal Travel Z - Axis | mm | 215 |
| Rapid traverse (X/Z) - Axes | m/min | 20 / 20 |
| TURRET CENTER | ||
| No. of Stations | nos. | 8 |
| Tool Shank Size | mm | 20 x 20 |
| Maximum Boring Bar Diameter | mm | 32 |
| Turret Indexing | Type | Hydraulic |
| Turret Indexing Time | sec | Less than 1.0 |
| TAILSTOCK | ||
| Quill Diameter | mm | -- |
| Quill Stroke | mm | - |
| CNC SYSTEM | ||
| Controller | Type | Fanuc / Siemens |
| Machine Size | ||
| Front x Side x Height | mm | 2056 x 1515 x 1652 |
| Machine Weight (Approx) | kg | 1900 |
