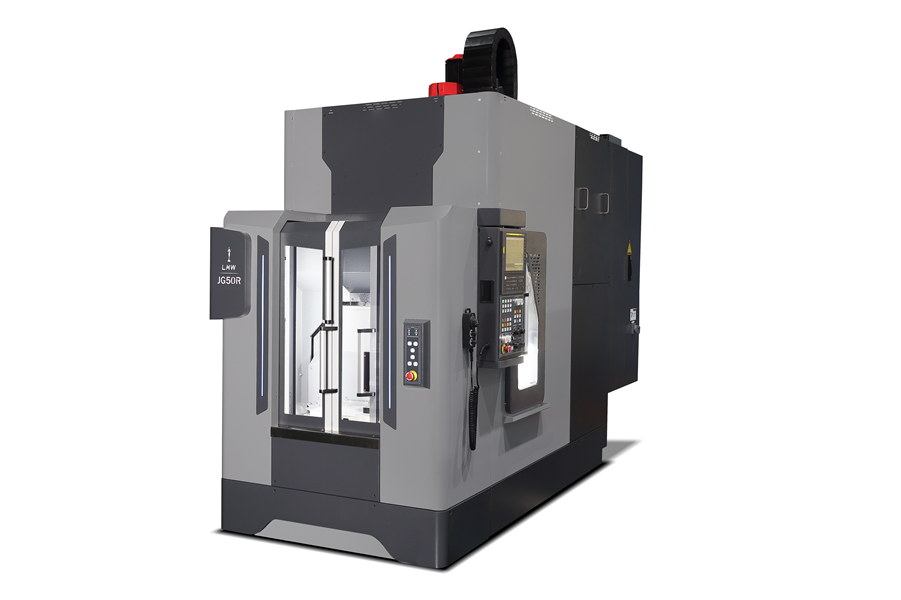

JG 50R
NEW| Description | Unit | JG 50R |
|---|---|---|
| TRAVEL | ||
| X/Y/Z - Axis | mm | 480 x 400 x 400 |
| AUTOMATIC PALLET CHANGER | ||
| Pallet size | mm | 550 x 380 |
| Max. weight on pallet | kg | 300 |
| Pallet indexing time | sec | 8 |
| Stroke | ||
| X axis | mm | 500 |
| Y axis | mm | 400 |
| Z axis | mm | 400 |
| SPINDLE | ||
| Max. Spindle Speed | rpm | 12000 |
| Spindle Bore Taper | Type | HSK A50 |
| Motor Power (S1 / S2-30min/S3-25%) | kw | 7.5/11/15 |
| Max. Spindle Torque (S1 / S2-30min/S3-25%) | Nm | 47.7/70/95.5 |
| FEED SYSTEM | ||
| Rapid Traverse rate (X/Y/Z) - Axis | m/min | 48 / 48 / 48 |
| Guideways | - | LM Guides |
| AUTOMATIC TOOL CHANGER | ||
| No. of tools | nos. | 26 |
| Max. Tool length | mm | 320 |
| Tool change time (tool to tool) | sec | 1 |
| GENERAL | ||
| Floor space | m² | 6.7 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
