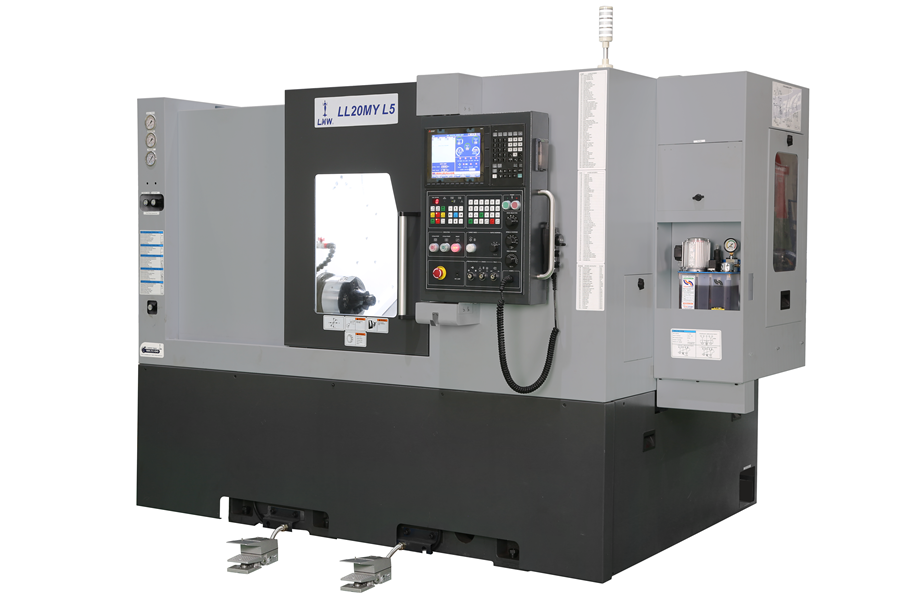

LL20MY L5
| Description | Unit | LL20MY L5 |
|---|---|---|
| Capacity | ||
| Swing over bed | mm | 510 |
| Chuck Size | mm | 210 |
| Max. Turning Diameter | mm | 300 |
| Max.Turning Length | mm | 414 |
| Admit Between Centres | mm | 625 |
| Spindle | ||
| Spindle nose | type | A2-6 |
| Hole through Spindle | Mm | 61 |
| Maximum Spindle.speed | rpm | 4000 |
| Spindle motorpower (cont./15min) | Kw | 9 / 13.5 |
| FEED | ||
| Inclination of Carriage | mm | 600 to Horizontal Plane |
| Travel X - Axis | mm | 230 |
| Travel Y - Axis | mm | ±50 |
| Travel Z - Axis | mm | 520 |
| Rapid traverse (X/Z) - Axes | m/min | 30 / 15 / 30 |
| LIVE TOOL TURRET (BMT 55) | ||
| No. of Stations | Nos | 12 |
| Tool Shank Size | mm | 25 x 25 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Servo |
| Turret Indexing Time | Sec | 2.3 to 2.5 |
| Driven motor power | kW | 4.82 |
| TAILSTOCK | ||
| Quill Diameter | mm | 75 |
| Quill Stroke | mm | 100 |
| Quill Taper | mm | MT-4 |
| CNC SYSTEM | ||
| CNC System | Type | Siemens |
| MACHINE SIZE | ||
| Front x Side x Height | mm | 2940 x 1788 x 2005 |
| Machine Weight (approx.) | mm | 4500 |
