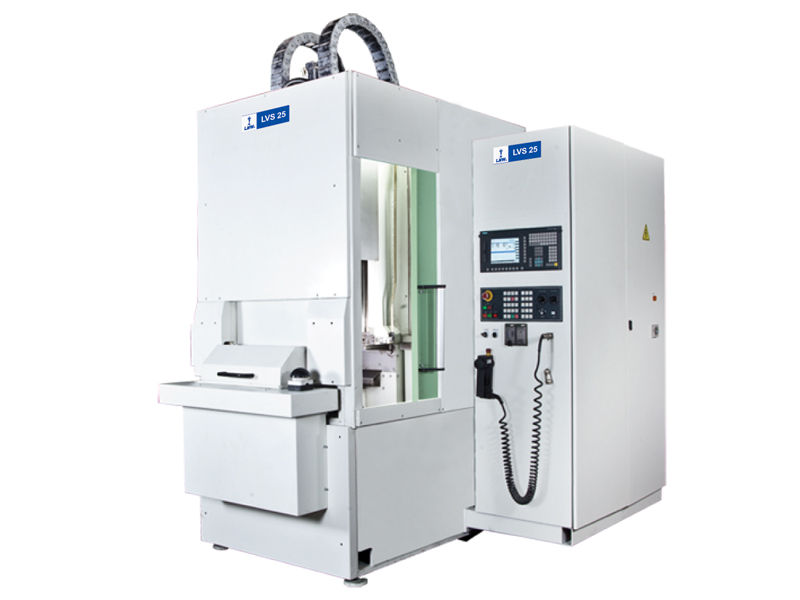

LVS 25
| Description | Unit | LVS 25 |
|---|---|---|
| Capacity | ||
| Max. Turning Diameter | mm | 180 |
| Max.Turning Length | mm | 145 |
| Chuck size | mm | 250 |
| Turning diameter without swing loader | mm | 250 |
| Turning length without swing loader | mm | 235 |
| Maximum Turret Swing Diameter | mm | 720 |
| SPINDLE | ||
| Spindle Construction | type | Integral Motor |
| Spindle nose | - | A2-6 |
| Spindle Speed | rpm | 3500 |
| Spindle Motor Power | kw | 15 / 18.5 |
| FEED | ||
| Travel X - Axis | mm | 305 |
| Travel Z - Axis | mm | 300 |
| Rapid traverse (X/Z) - Axes | m/min | 30 x 30 |
| TURRET | ||
| No. of Stations | nos. | 12 |
| Tool Shank | mm | BMT 55 |
| Maximum Boring Bar Diameter | mm | 40 |
| Turret Indexing | Type | Hydraulic |
| Turret Indexing Time | sec | 1.0 |
| CNC SYSTEM | ||
| Controller | Type | Fanuc |
| Machine Size | ||
| L x B x H | mm | 4650 x 1815 x 2860 |
| Weight | kg | 7500 |
